M-10003  CM-100

with Digital Feeback controller

Click here for larger Image


              This precision crafted Disperser allows you to mix, disperse and emulsify in quantities from a 100 CC's, up to
              2-3 gallons. Ultra high speed, and a choice of impellers, rotor/stator attachment, and media mill attachment
              Makes this a versatile piece of equipment that every laboratory needs.

             The standard machine comes with a Cowles style open sawtooth impeller, with optional impeller sizes from
             1" up to 2.5". Options include mechanical tachometer, mix container holder, and even a digital feedback electronic
             speed controller for constant speed.

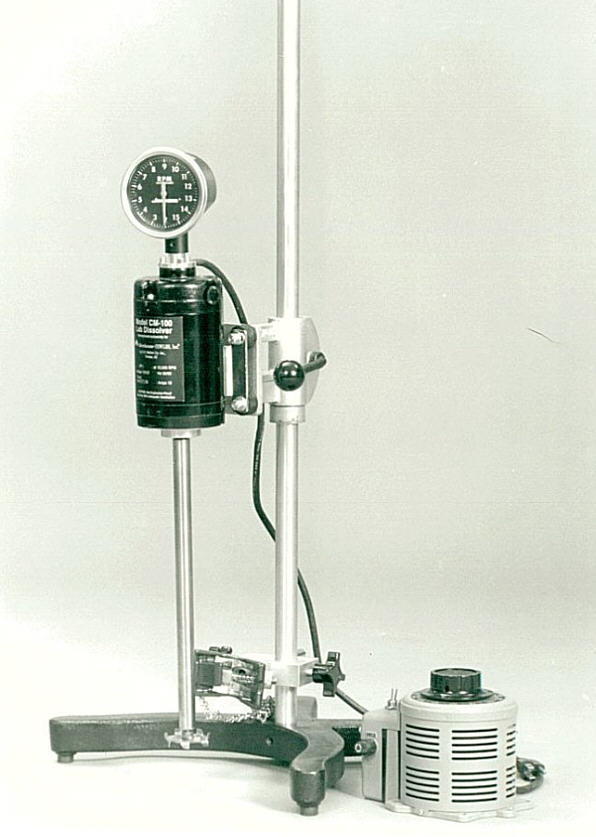

             The Variac type control shown in picture works fine for most applications, but due to the motor  characteristics,
              as the product viscosity changes, the motor speed will vary inversely with viscosity changes. The optional
              digital   feedback speed controller senses changes in motor speed and adjusts the power to
              the motor accordingly, to hold the speed constant at the level you selected.

            Specifications :

             Motor: open type motor, generates 1 HP @ 10,000 RPM

             Speed range: approximately 100-16,000 RPM

             Disperser shaft: 304 Stainless Steel, 3/4" diameter by 12.5" long

             Impellers: Cowles style sawtooth, 1", 1.25", 1.5", 2", and 2.5".  2" is standard

             Stand:  16 pound cast iron base, and 1" diameter by 36" long aluminum support rod

             Controller:  15 amp variable transformer is standard.

            Options:

            Mechanical tachometer, 2000-16,000 RPM (to be replaced with digital tach when available)

            Mix container holder, to secure small containers when mixing

            Digital feedback speed controller, with digital tachometer

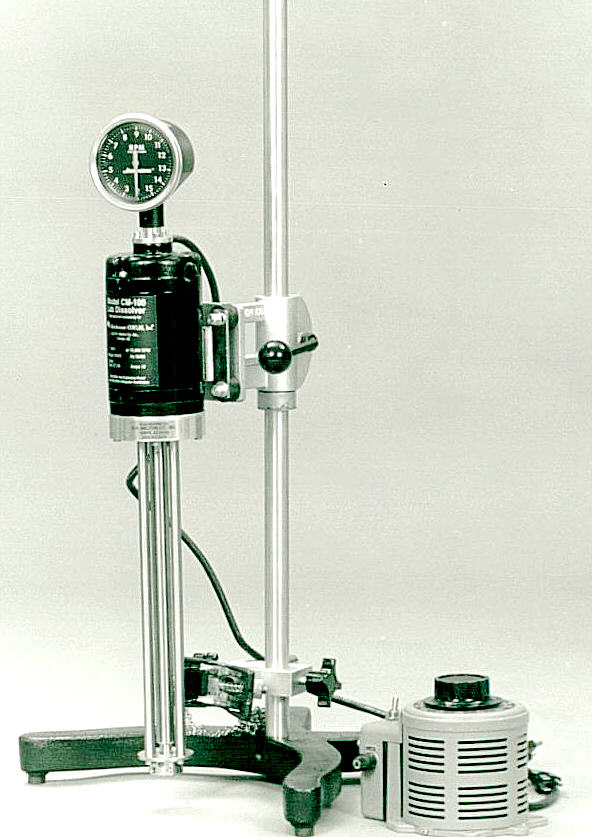

            Rotor Stator attachment, with 1.1" rotor.

            Medial mill attachment, shaft with three 1.75" discs for media milling

                                                           Click here for Rotor Stator and Media Mill

                         Click here for info on Digital Controller
