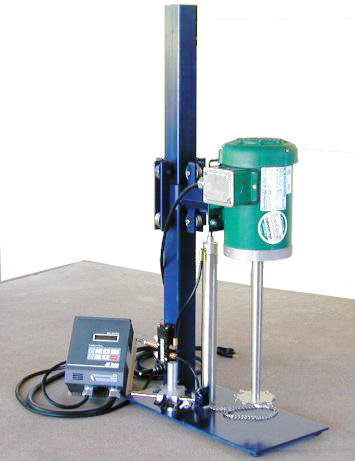

The CMA-150 is a 1.5 HP, variable speed, direct drive disperser designed for use in 5 gallon pails. It is inverter controlled, and uses either a 3” or 4” Cowles style sawtooth impeller. This is an economical, heavy duty disperser that provides full dispersion speed. Available with either a TEFC motor, or explosion Proof motor, it runs off standard 115 volt single phase AC power.

The 14” pneumatic lift is standard, but this unit may be ordered with a hand crank lift mechanism

Specifications:

Motor: 1.5 HP, TEFC or Explosion Proof.

Controller:  ProgrammableVariable Frequency AC drive with built in RPM readout.

Power requirements: 115 V, single phase 20 amp circuit (220V only input available at reduced cost)

Shaft RPM: Approximately 400 to 4200 RPM.

Shaft: 304 stainless steel, tapered for smooth running, 14” long.

Air requirements:  60-80 PSIG, nominal volume.

Lift: Pneumatic air cylinder with control valve, 14” stroke

Support stand: Heavy steel base 11.5" by 23.5", with roller bearing carriage for motor assembly raising
                        42" overall height.

Weight: 70-90 pounds, depending on motor options.

Impellers: 3” and 4” are supplied.

Accessories: Adjustable mix container holder.

Applications: Accepts standard 5 gallon pails for mixing and dispersing.

Options: 5400 RPM capable Explosion Proof motor, and 7000 RPM capable XP proof  motor, and hand crank lift  in lieu of  Pneumatic lift.

2 HP motors also available, but in 220V only

Pricing:

1.5 HP, 4320 RPM Maximum speed, TEFC only, as shown above:  $3050

1.5 HP, Explosion Proof motor, 500-5400 RPM, as shown above:  $3595 ( delivery may be extended)

1.5 HP, TEFC/XP, 500-7200 RPM, as shown above: $3695. (delivery may be extended)

2 HP, 400-4320 RPM,  220V only, TEFC only, as shown above:  $3150

Hand crank lift in lieu of Pneumatic lift:  Add $140 for hand crank.

Extra impellers, 3" or 4": $80 each
